產品描述

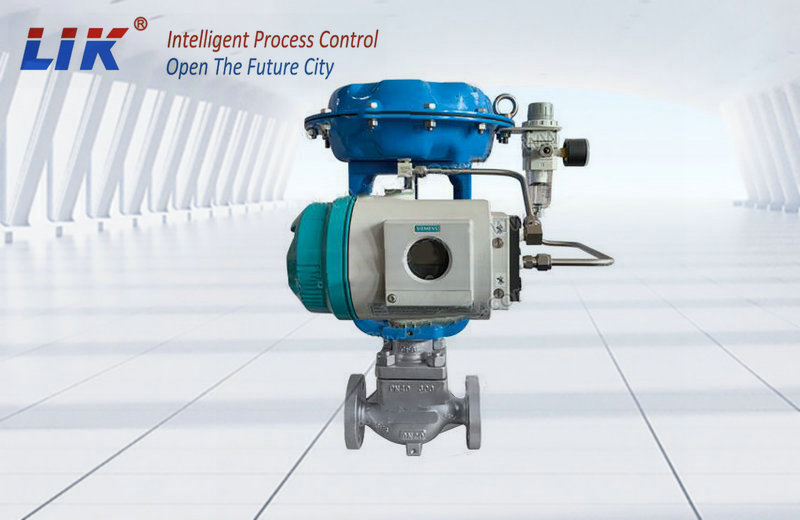

10W系列微小流量調節閥，采用流體壓力不平衡型閥芯結構，閥芯形狀可選擇針型或V型口，微小流量調節閥系列體積小、重量輕、性能高、用于微小流量的精確控制。例如在精密化工，科研機構中使用其來對流量及壓力等進行精密的微控。閥芯最小口徑可以達到1mm，最小可控CV可以達到0.001。
規格參數
驅動類型：氣動，電動
公稱通徑：NPS 1/2”~1”(DN15~DN25)
公稱壓力：Class150~Class600 (PN16~PN100)
溫度范圍：-45℃~230℃
材料范圍：碳鋼, 不銹鋼, 雙相不銹鋼, Inconel, Monel, Hastelloy，Ti等
泄漏等級：ANSI IV級、Ⅴ級或Ⅵ級
閥蓋類型：標準型 ，低溫型 ，波紋管型
可調比：6:1～8:1
最小可控CV：0.001
Product Description
The 10W series micro-flow control valve adopts a fluid pressure unbalanced spool structure. The spool shape can be selected as needle type or V-shaped port. The micro-flow control valve series is small in size, light in weight, and high in performance. It is used for precise control of micro-flow. For example, in precision chemical engineering and scientific research institutions, it is used for precise micro-control of flow and pressure. The minimum diameter of the spool can reach 1mm, and the minimum controllable CV can reach 0.001.
Specification Parameters
Drive Type: Pneumatic, Electric
Nominal Diameter: NPS 1/2" - 1" (DN15 - DN25)
Nominal Pressure: Class150 - Class600 (PN16 - PN100)
Temperature Range: -45°C - 230°C
Material Range: Carbon steel, Stainless steel, Duplex stainless steel, Inconel, Monel, Hastelloy, Ti, etc.
Leakage Level: ANSI Class IV, V or VI
Bonnet Type: Standard type, Low temperature type, Bellows type
Adjustable Ratio: 6:1 - 8:1
Minimum Controllable CV: 0.001
